Design Geothermal Heat Pump Systems with GHE Analysis
Version 1.3 – More Powerful, More Flexible
Now supporting coaxial borehole heat exchangers for greater design flexibility.
- Try the demo version for free
- Free for teaching and academic research
-
Interactively model complex ground heat exchangers with groundwater flow
-
Perform hourly simulation of hybrid systems and optimize seasonal COP
-
Size GHEs according to ASHRAE and find out what affects borehole length
-
Analyze power and energy demand coverage of buildings
-

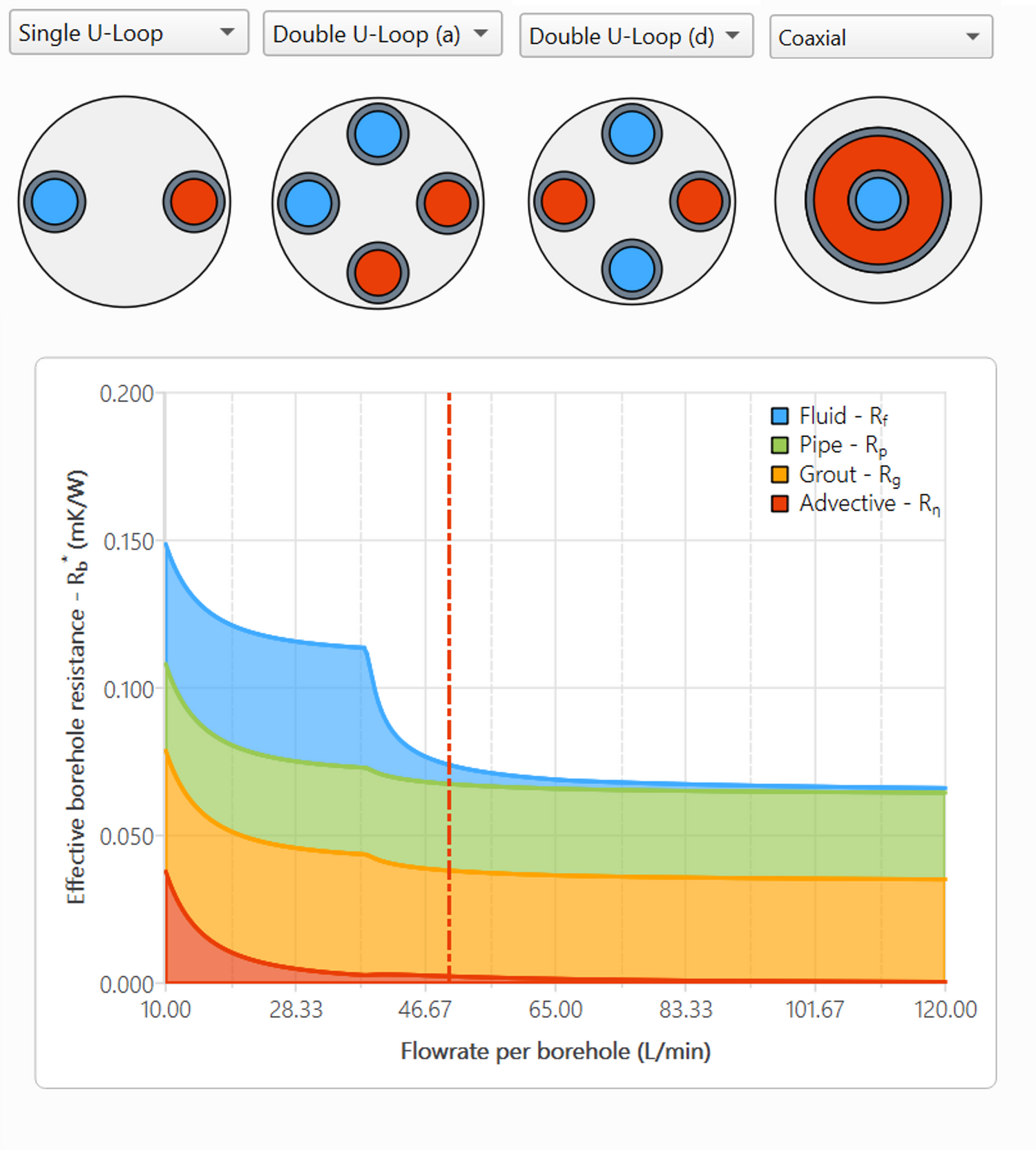

Compare design options and select efficient borehole heat exchangers
-

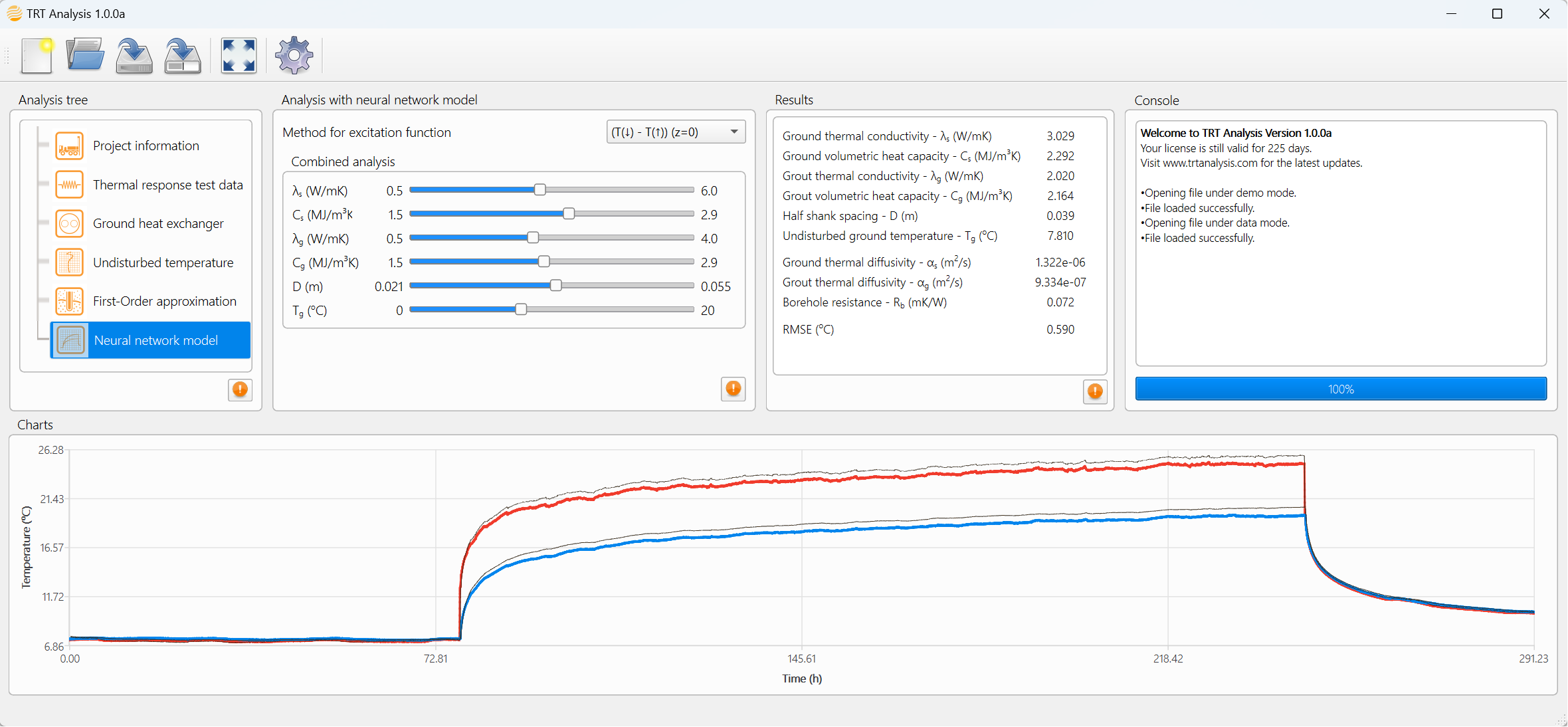

Interactively interpret TRT data with the infinite line source and ANN models
-
Analyze interrupted TRTs and integrate variations in heating power
-
Use temperature-dependent COP curves and integrate the GSHP's part-load efficiency
Design ground-source heat pump systems with GHE Analysis
GHE Analysis is a software package for the easy, intuitive and interactive design of ground-source heat pump systems. Use it to size irregular ground heat exchangers, optimize the heat transfer of geothermal boreholes and assess the seasonal performance coefficients of geothermal heat pumps. Based on over two decades of academic research, GHE Analysis incorporates a robust simulation engine designed to quickly simulate the hourly response of a GSHP system. This allows you to easily visualize the energy consumption and power demand of selected equipment and design a cost-effective system. For a complete list of GHE Analysis features, follow this link.

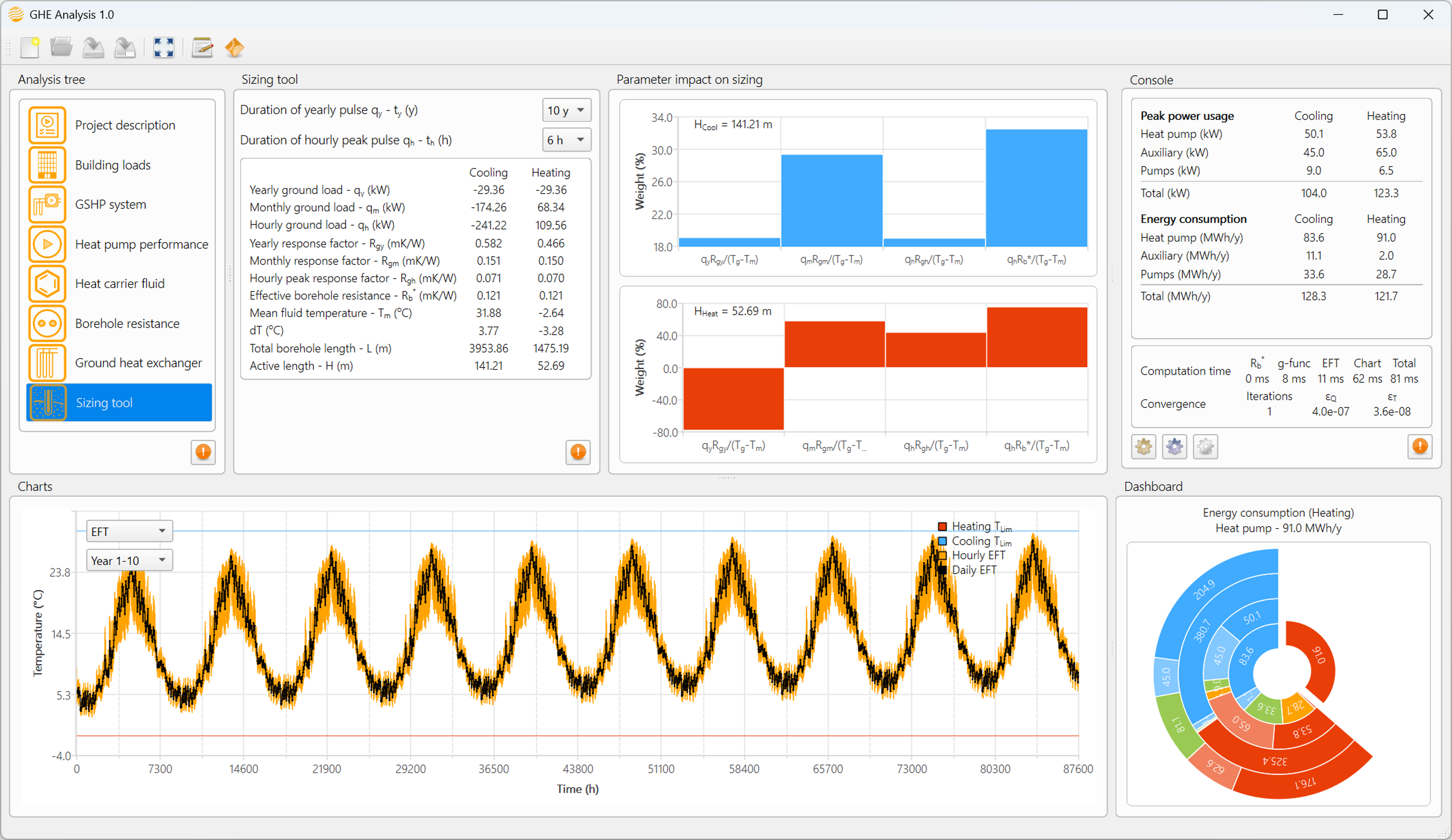

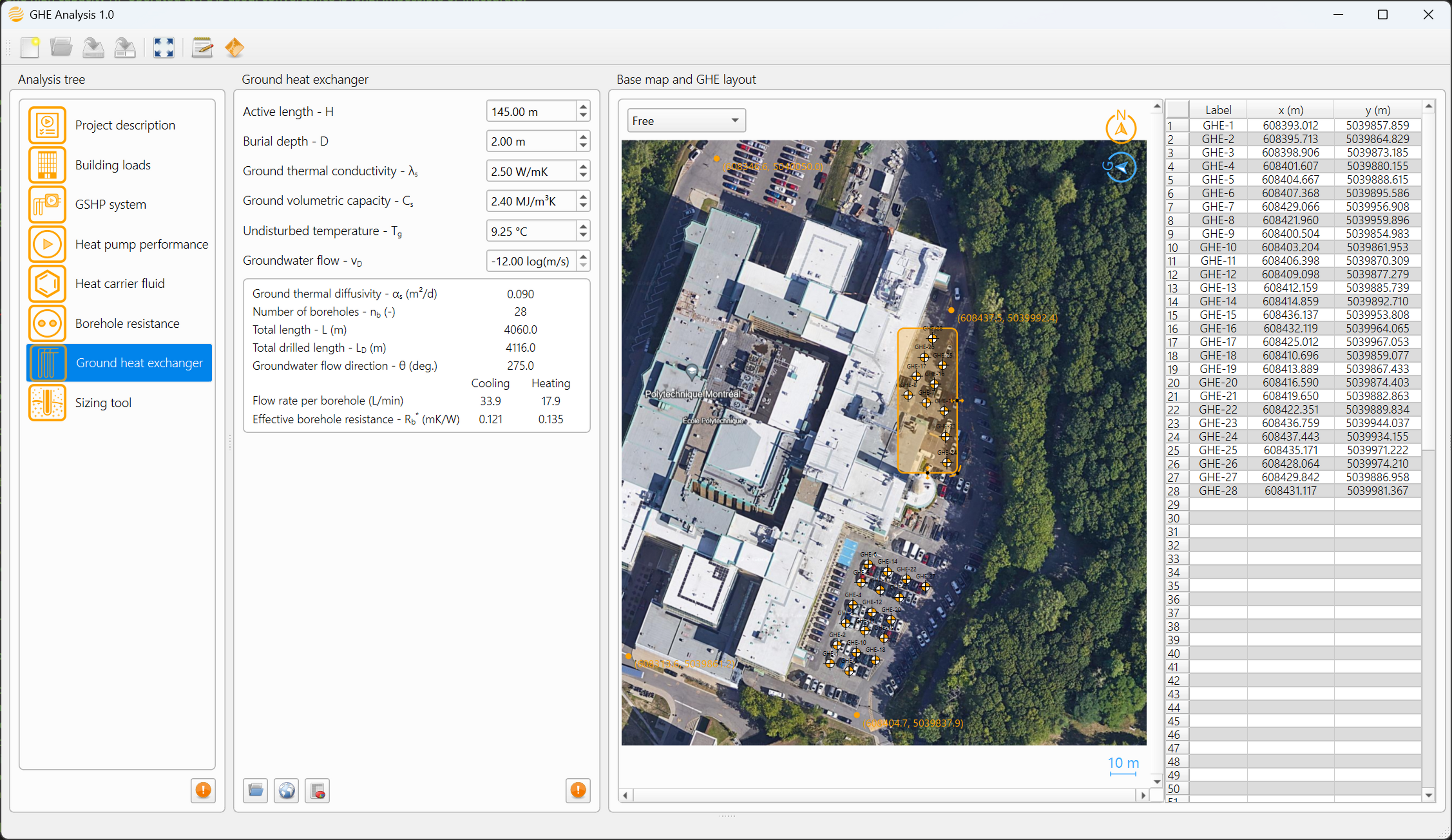

GHE Analysis Software Interface
Interpret thermal response tests with TRT Analysis
Thermal response tests allow measurement of ground thermal conductivity before design of ground-source heat pump systems. Interpretation of TRTs can be challenging, especially if the heating power varies in time or is interrupted due to a generator failure. TRT analysis is designed to interpret these complex TRTs while providing quality results. TRT analysis is designed to interpret these complex TRTs while providing quality results.

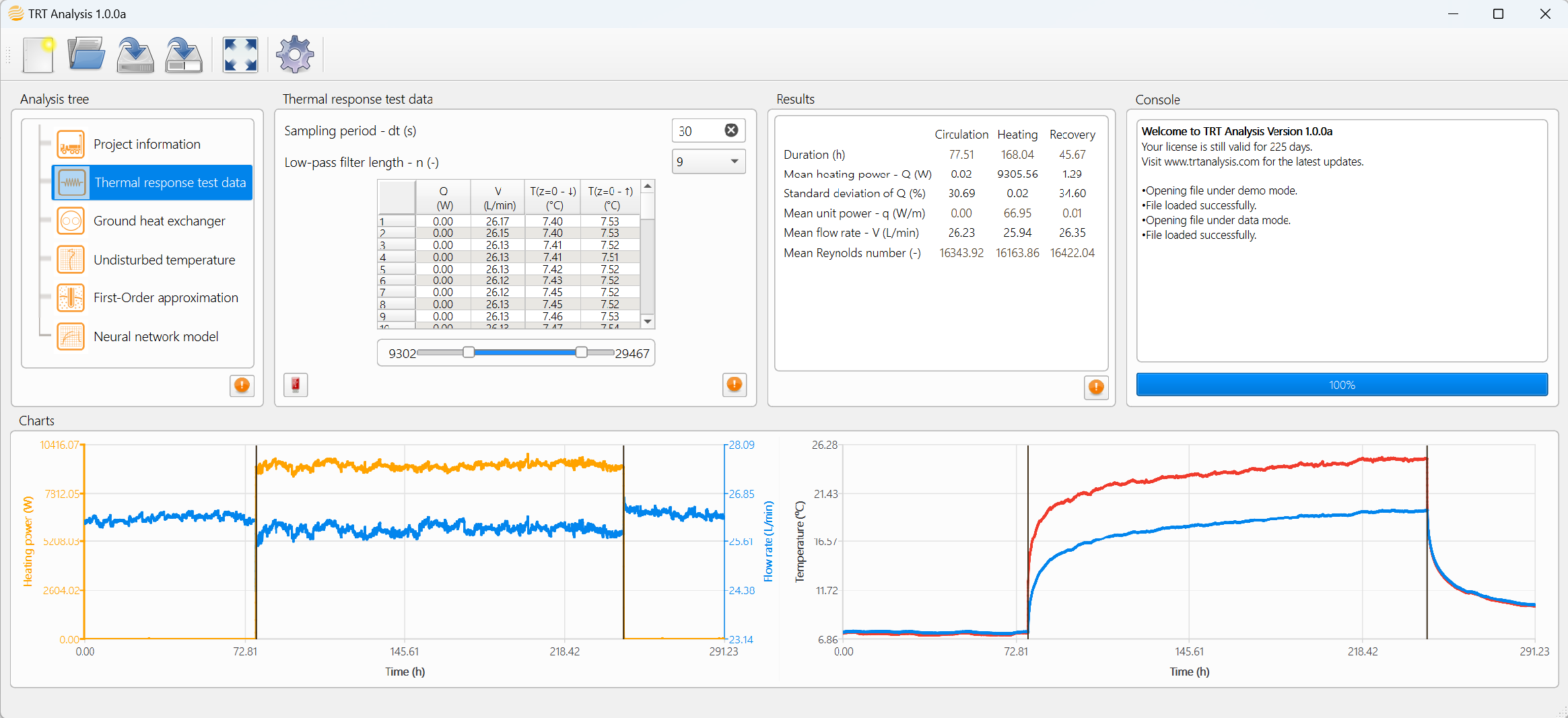

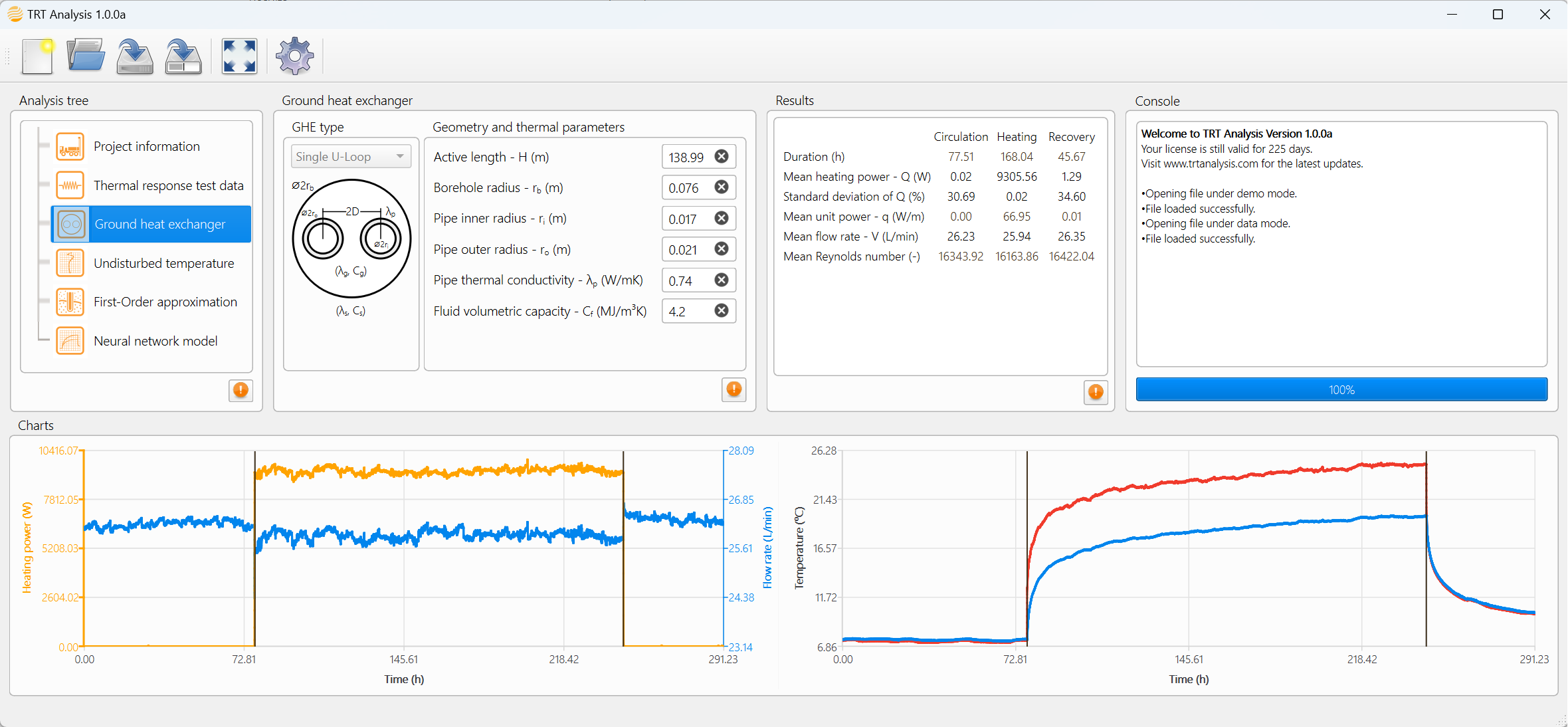

TRT Analysis Software Interface
Learn on GSHP systems and the Analysis suite
Let customers speak for us
This thermal response test interpretation software is the most easy, reliable and straight to the point ones I've tried in recent years.
This software allowed me to analyze a TRT that had gone wrong. Thanks to TRT Analysis, I didn't have to repeat the test at my expense and I was able to submit my report to my client on time.
