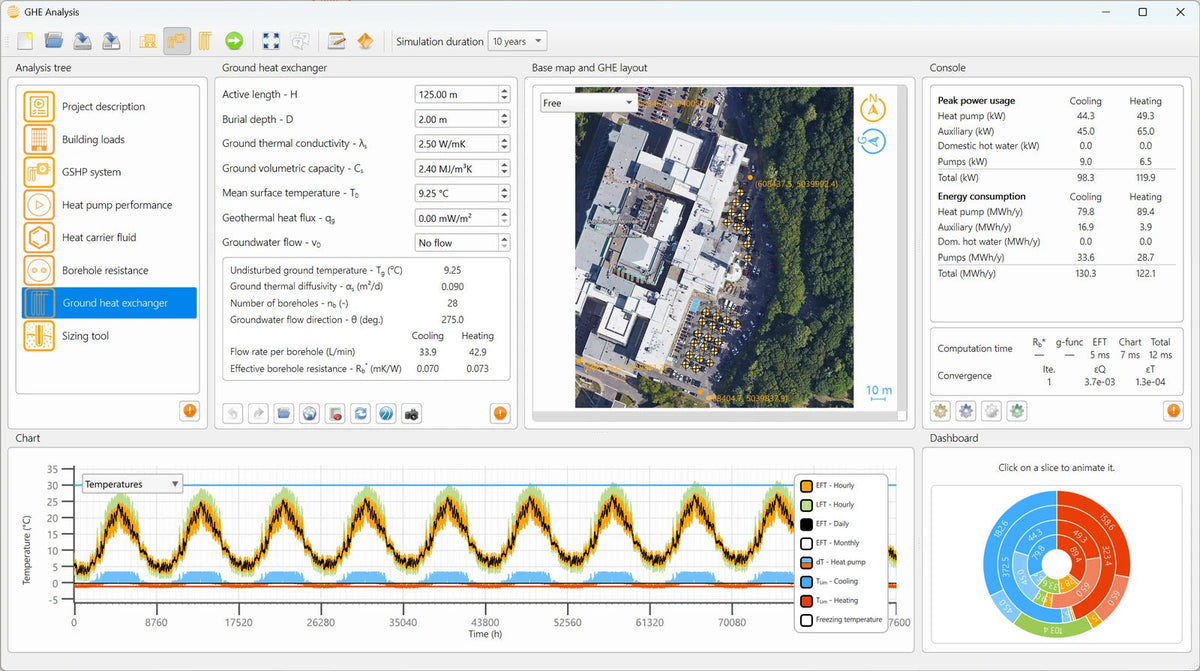

• The full GHE Analysis window: analysis tree, ground heat exchanger panel, georeferenced base map with the borehole field, console and results dashboard

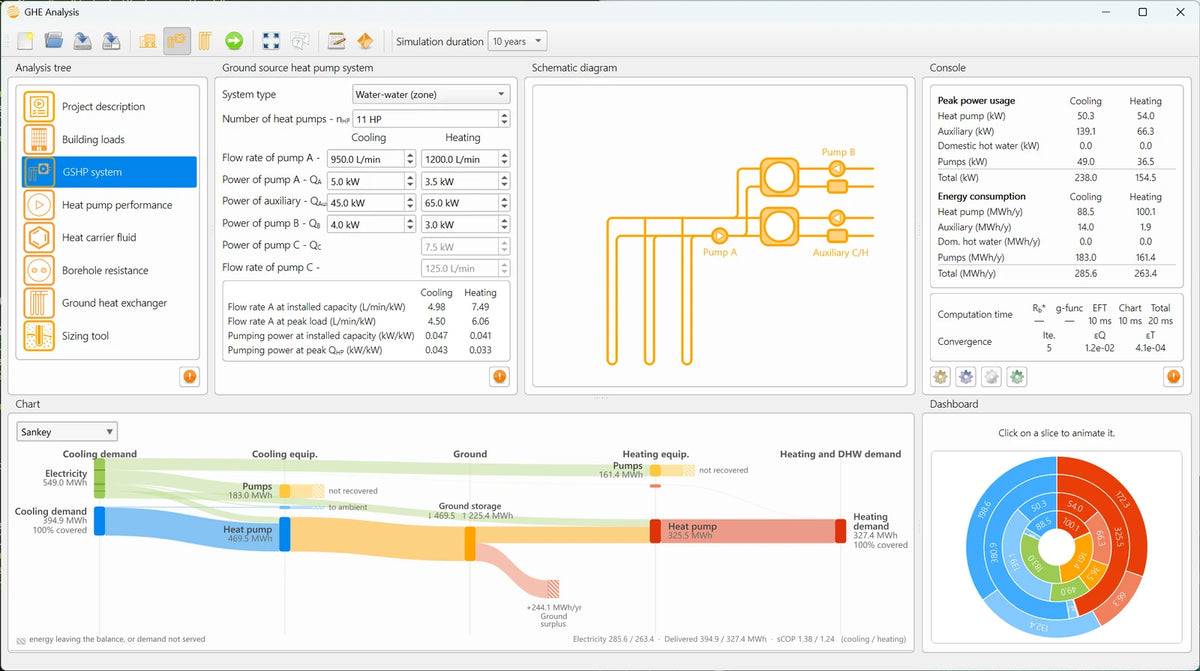

  • GHE Analysis charts panel: Sankey diagram of the annual energy balance, from the cooling demand through the ground to the heating and domestic hot water demands

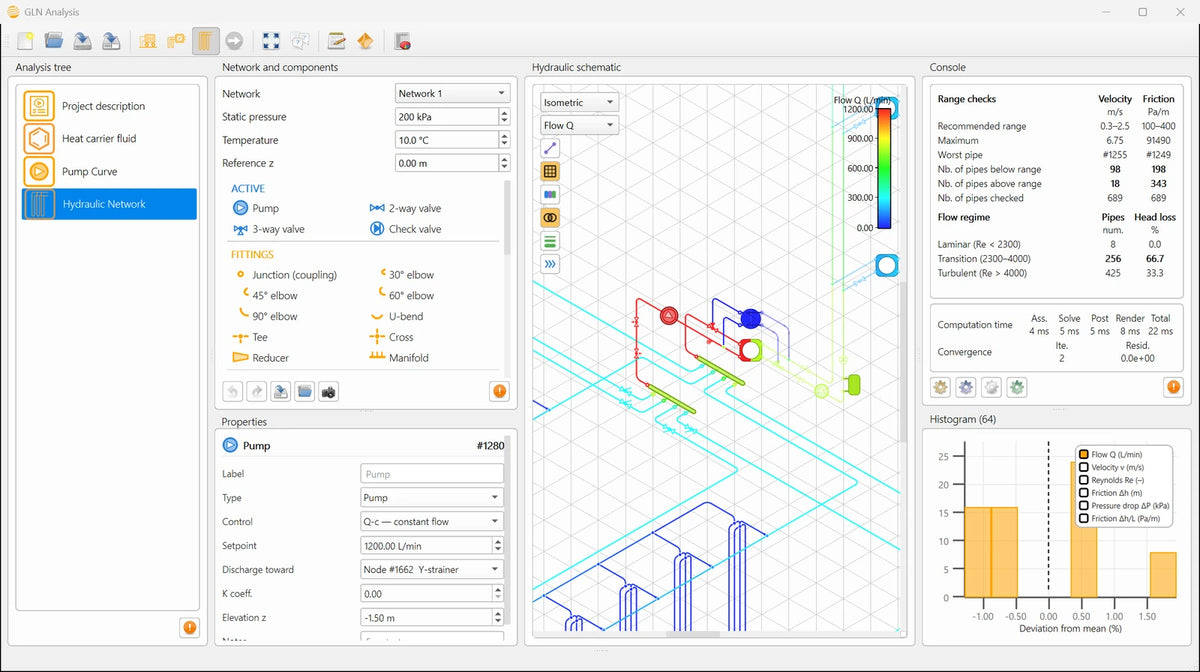

  • The GLN Analysis console: the result pages of a solved hydraulic network, with the computation-time and convergence footer

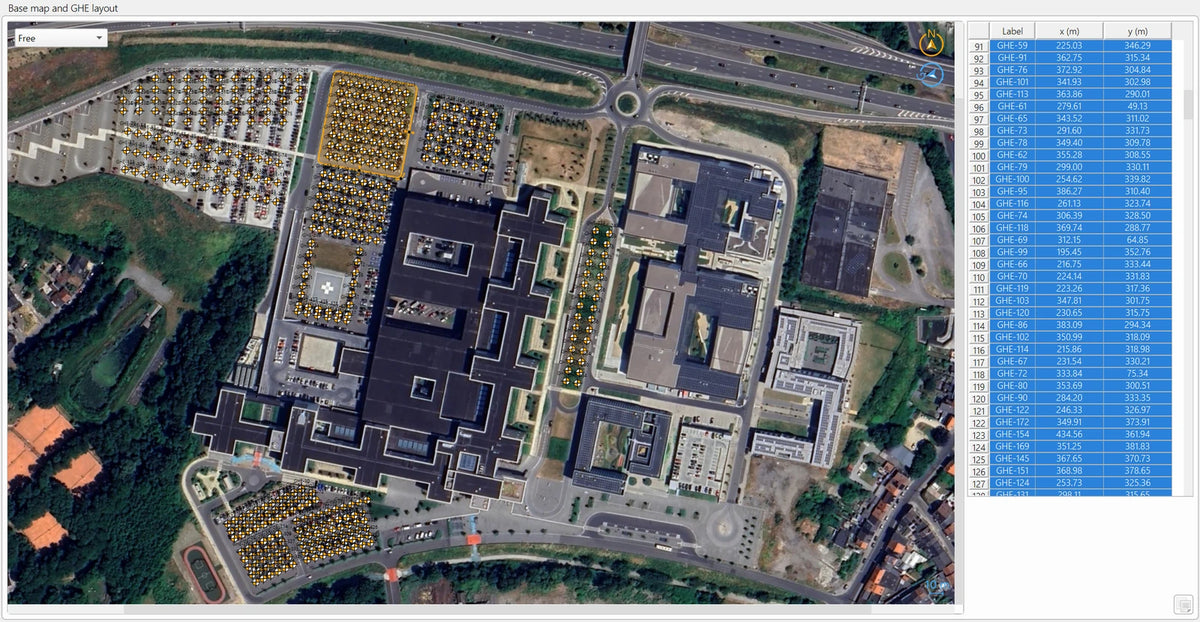

  • GHE Designer: borehole coordinate, azimuth and dip table for a large borehole field
  • Analysis Suite

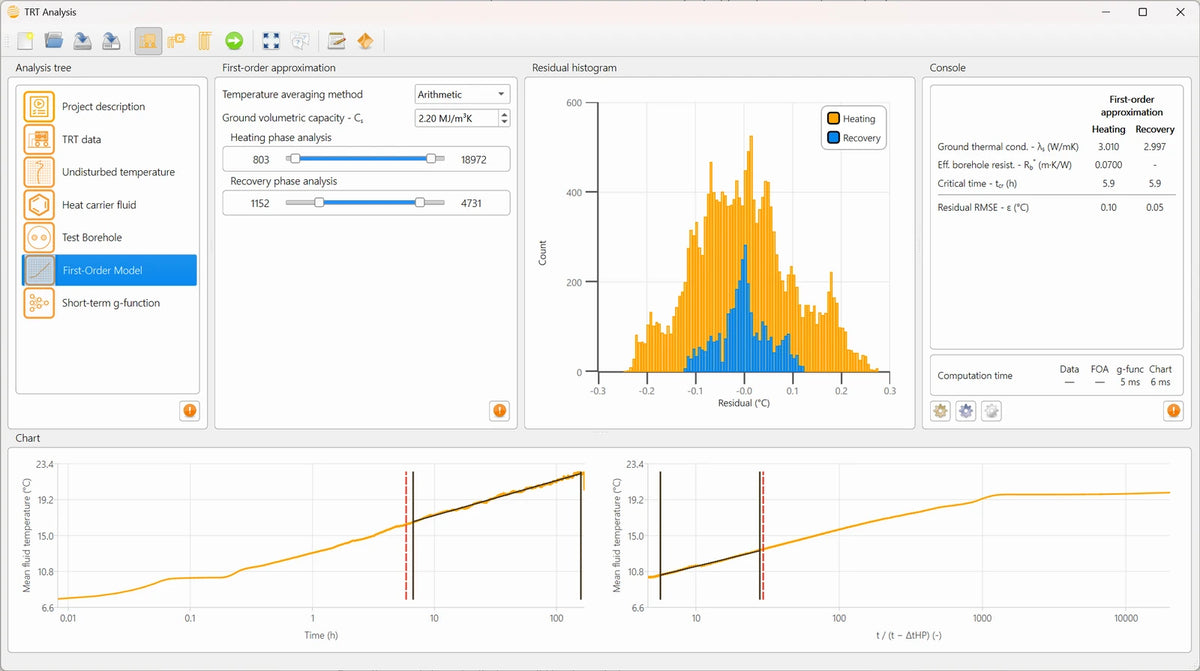

  • TRT Analysis first-order approximation panel: heating-phase regression of the mean fluid temperature against ln(t), recovery-phase regression and the critical-time line

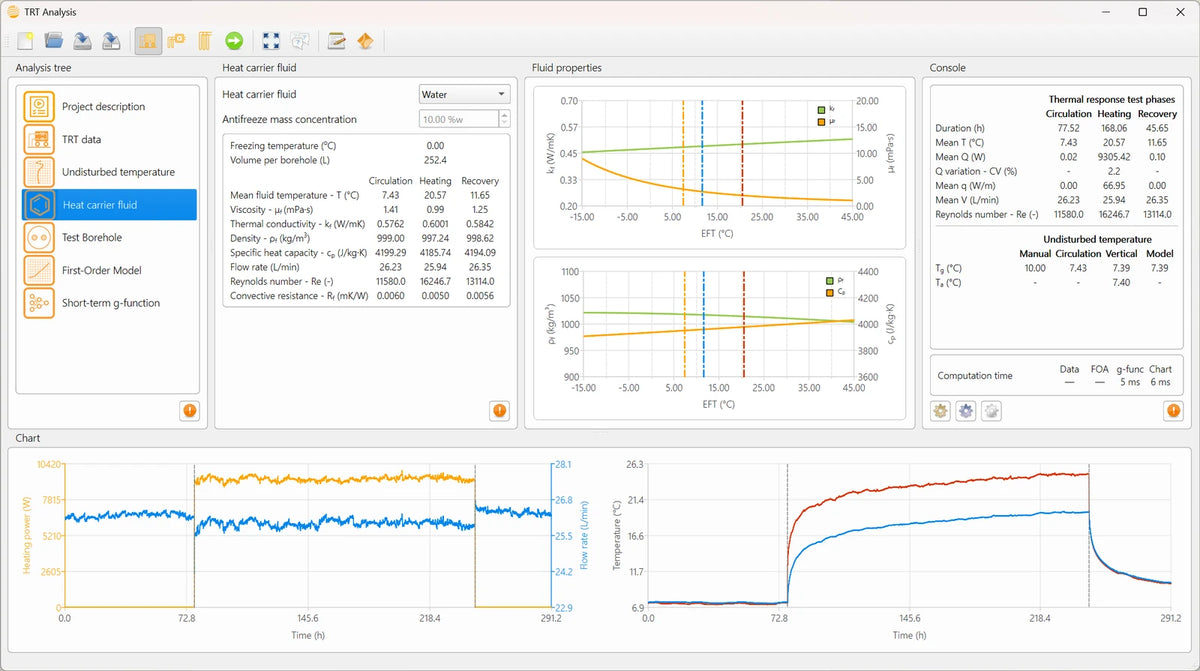

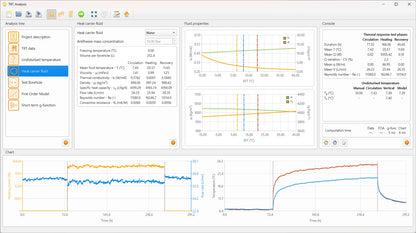

  • TRT Analysis heat carrier fluid panel: fluid selector, antifreeze concentration and the fluid properties evaluated for each test phase
1 7

Analysis Suite 3.0 — Windows installer

Analysis Suite 3.0 — Windows installer

Analysis Suite 3.0 for Windows: GHE Analysis, TRT Analysis and GLN Analysis in one application, with their three user manuals in PDF.

What you receive

  • The Windows installer (Windows 10 or 11, 64-bit, about 240 MB on disk)
  • The GHE, TRT and GLN Analysis user manuals (PDF)

Free download, no credit card. Without a licence the application runs in demonstration mode: every feature, with limited input ranges, and a sample project for each module opened at start-up. To lift the limits, buy an annual licence and load the licence file in the application; nothing needs to be reinstalled.

The download link is sent by email and stays available in your order confirmation.

Free
